Installing the Chigee AIO-6 Max smart riding display on a 2025 Aprilia Tuono V4 Factory 1100 brings a customizable tech upgrade to this hypernaked beast, complementing its stock 5-inch TFT dash. I paired it with Chigee’s Quick-Release Module for seamless swaps to my Kawasaki H2 SX SE and possibly more bikes later. The Anti-Theft Lock for Quick Release secures the display while mounted on the bike, preventing unauthorized removal.

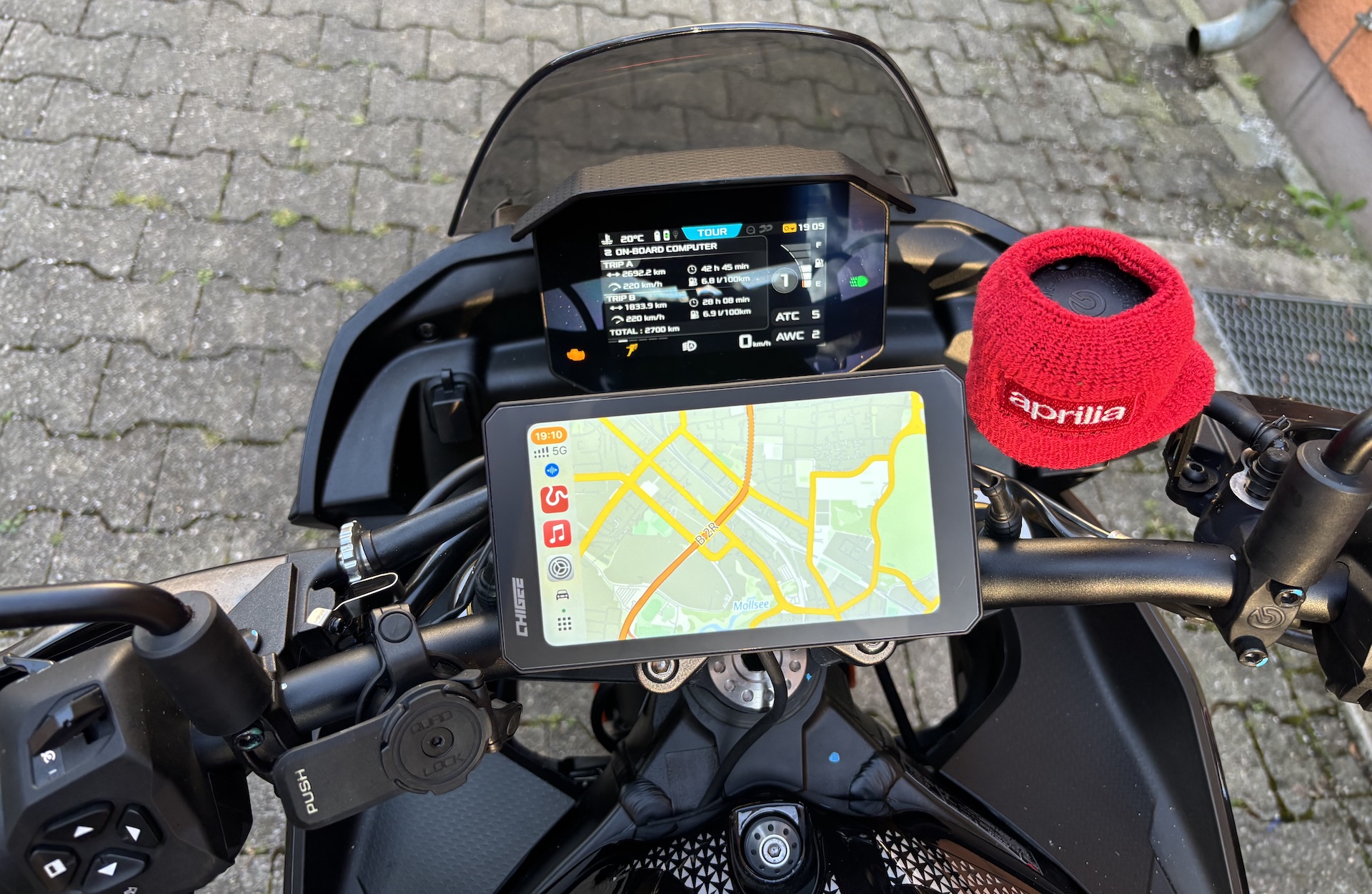

The AIO-6 Max offers a bright 6-inch IPS screen readable in direct sun, plus wireless Apple CarPlay/Android Auto and optional extras like tire pressure monitoring, dash cams, etc.. Its IP68/IPX9K rating and sturdy build handle real-world abuse from rain to gravel splash.

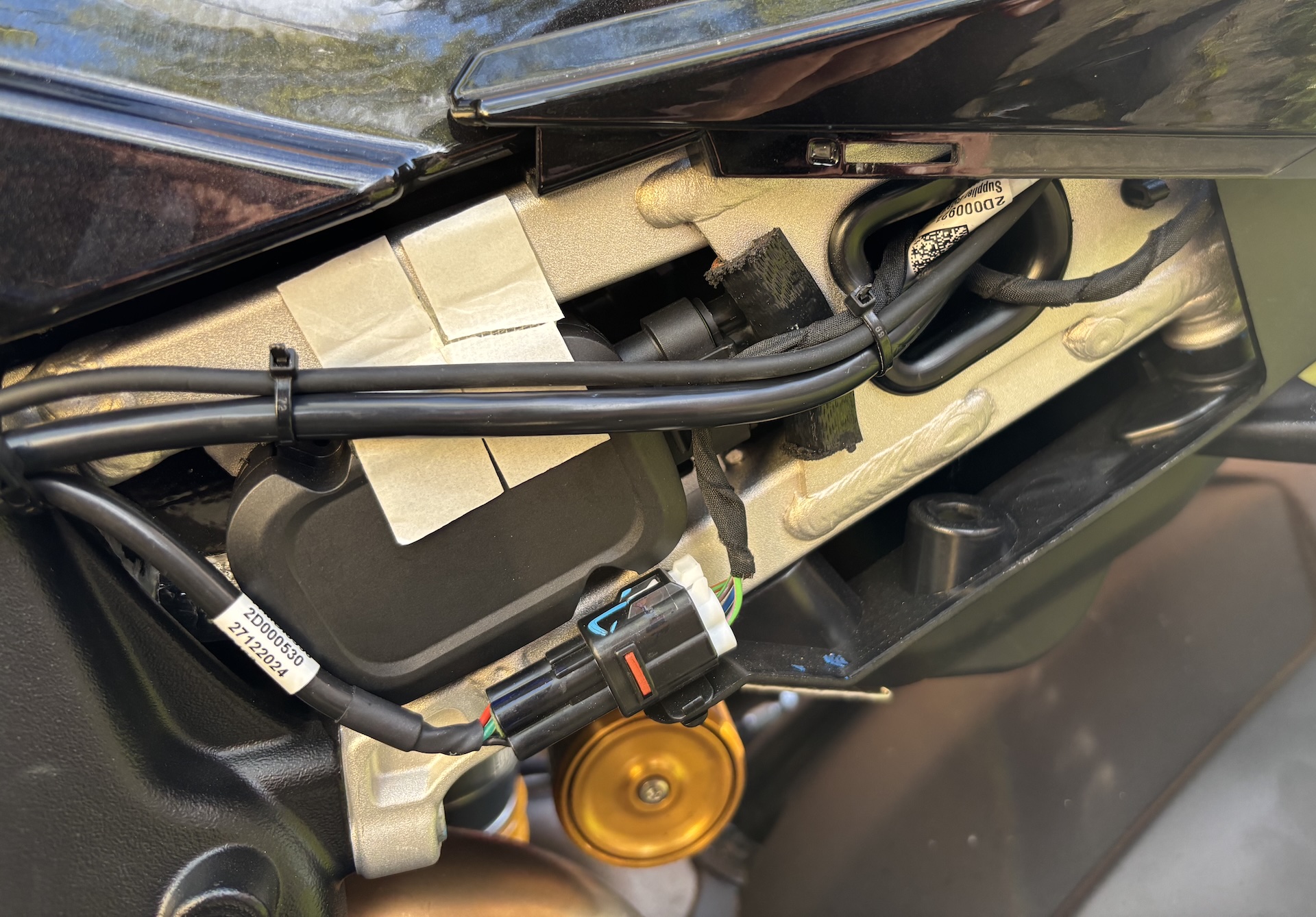

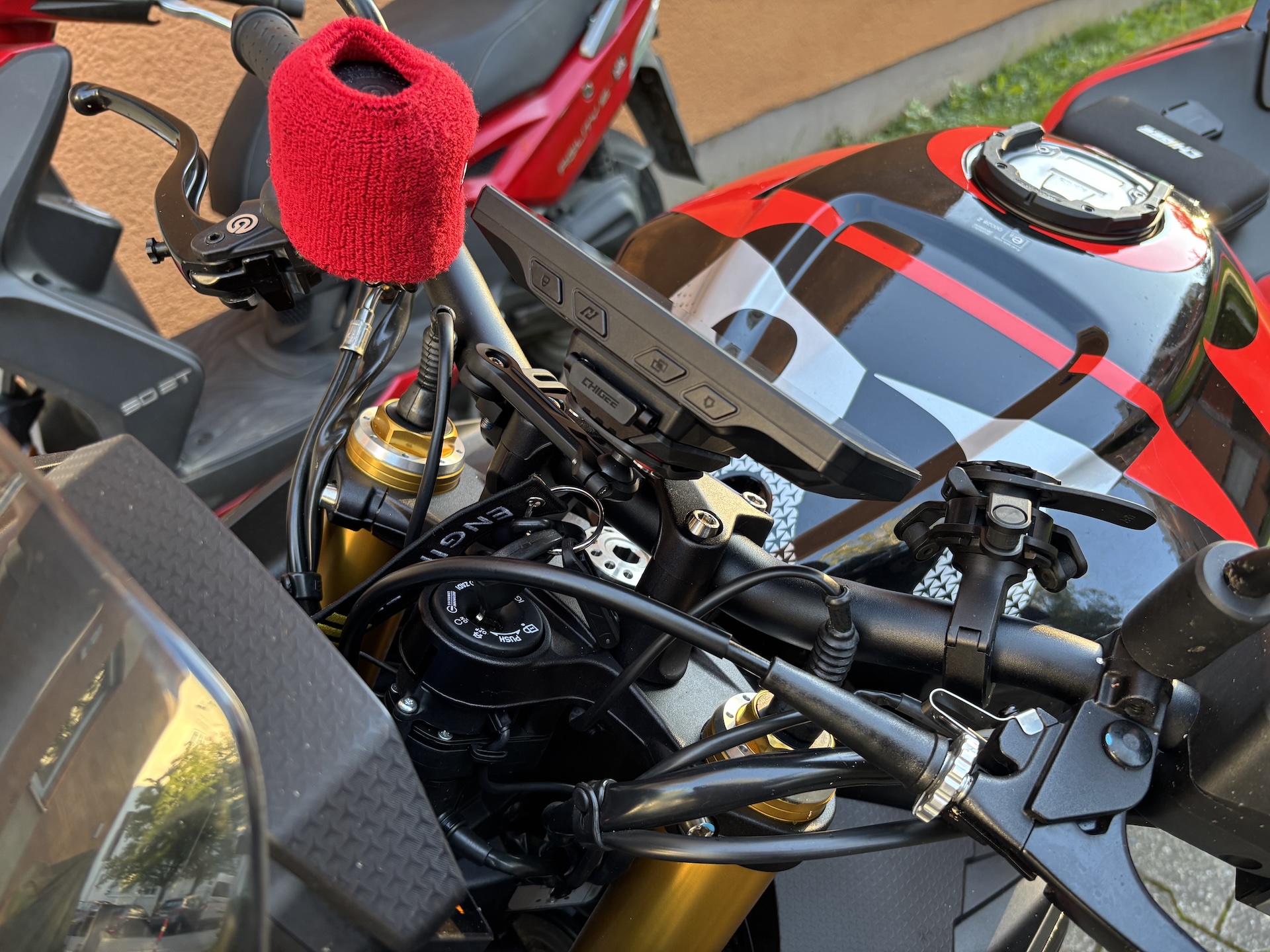

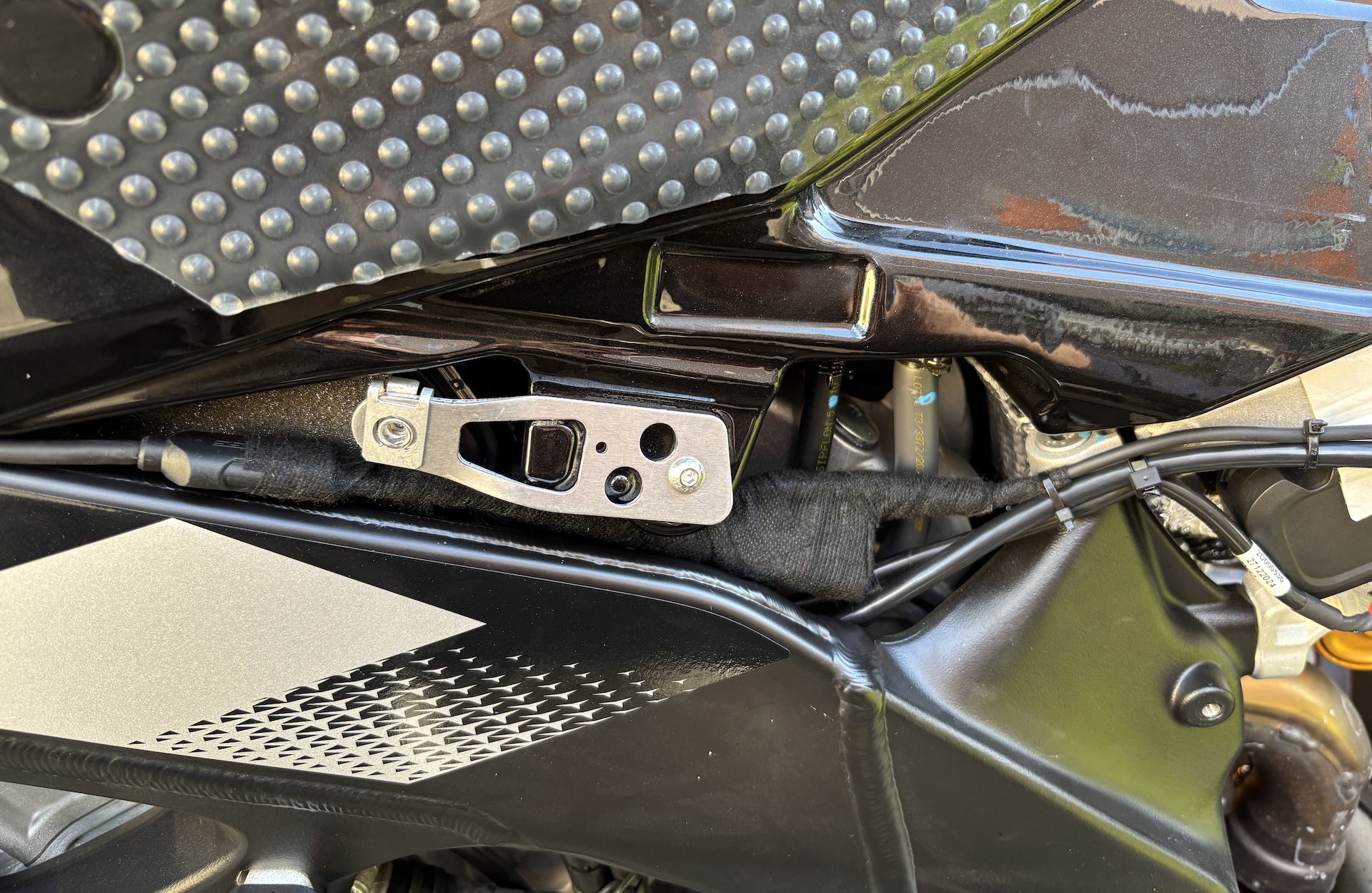

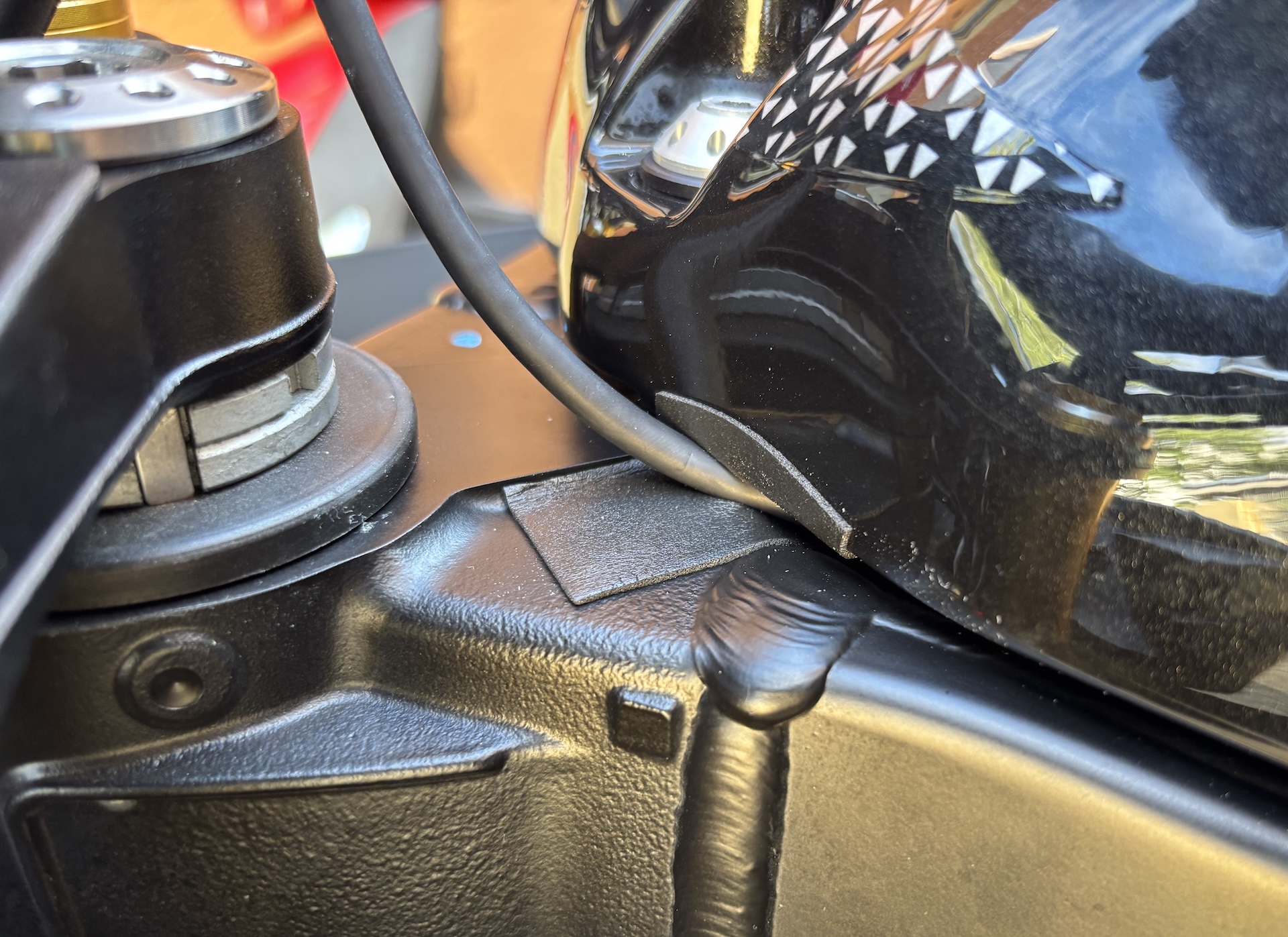

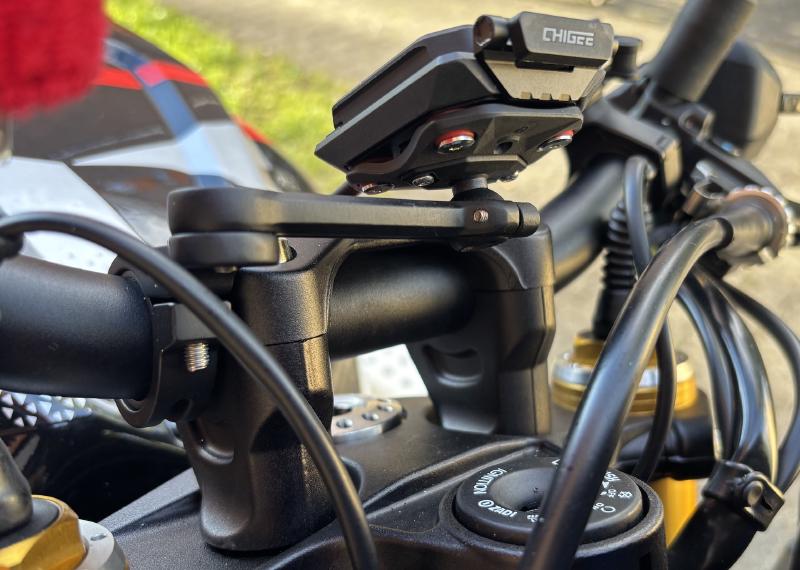

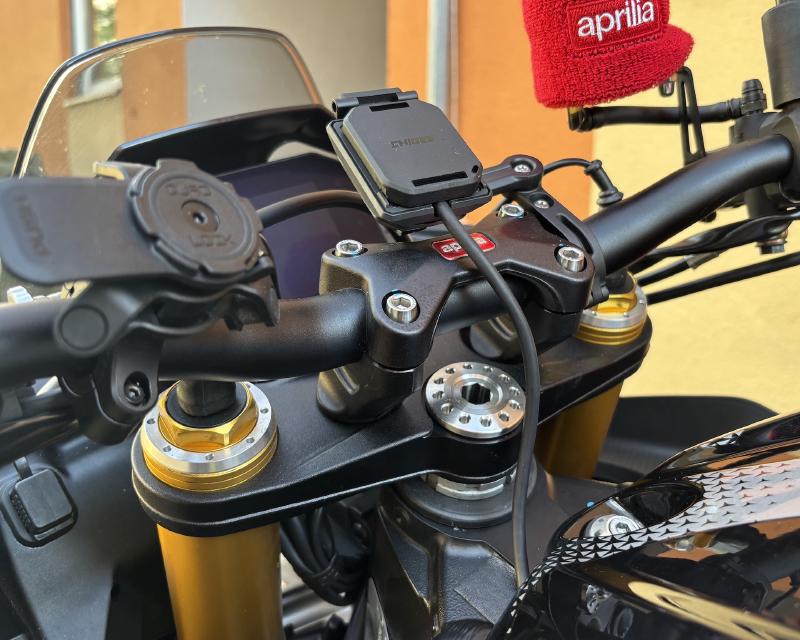

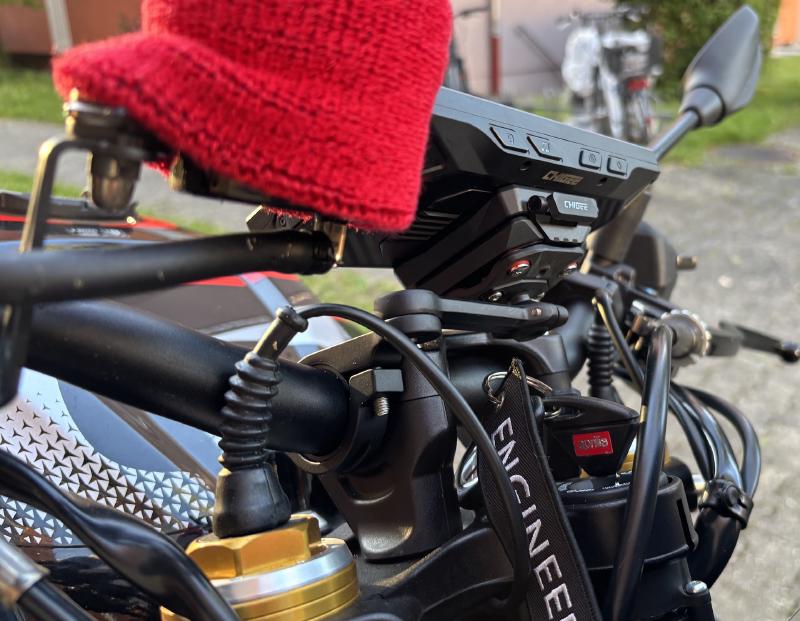

On the Tuono V4, the included handlebar mount centered neatly above the fork stem. Cable routing under the tank involved removing the top tank bolt and loosening two under-seat bolts. You can see the route of the cable on the supplied pictures.

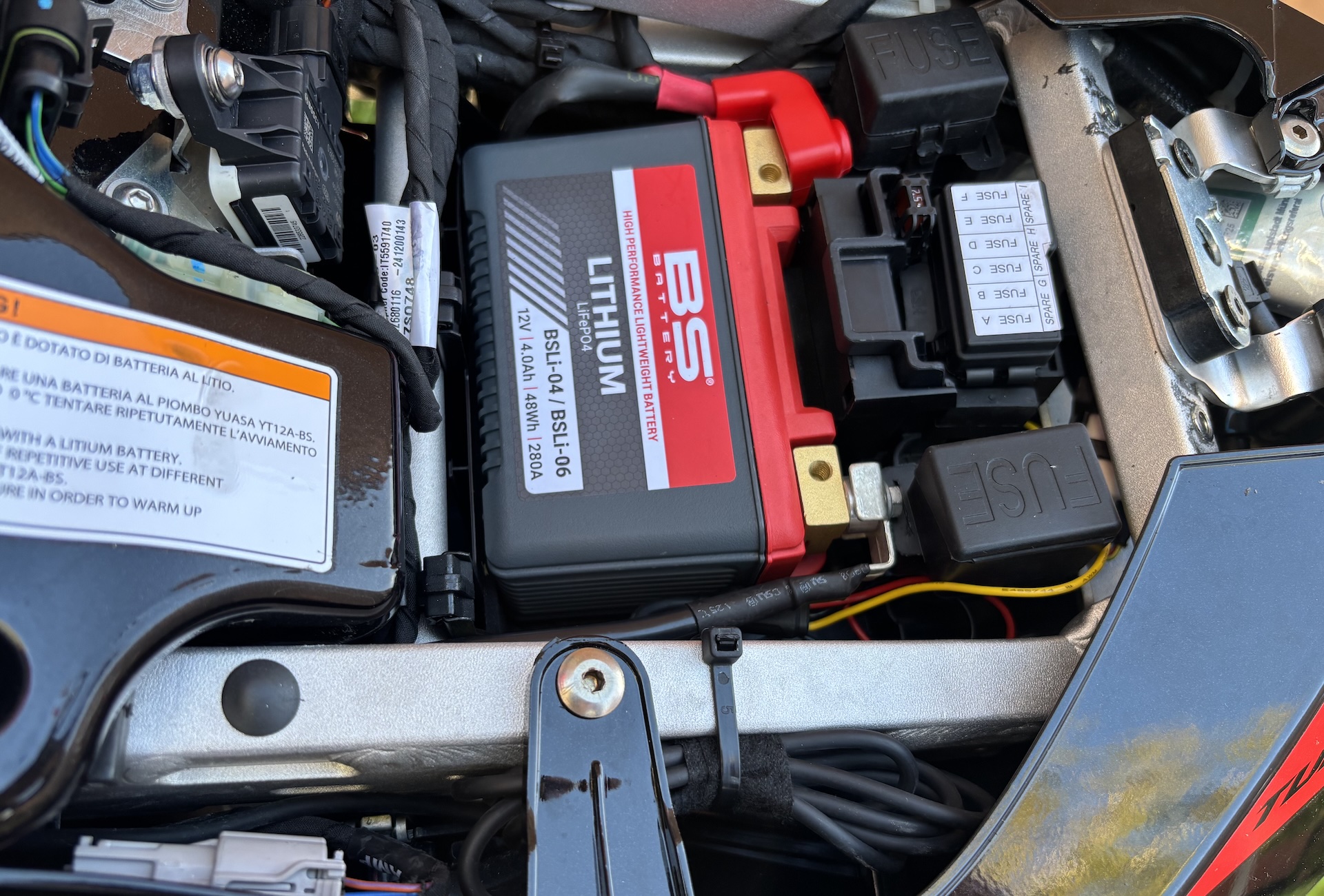

I hooked +12V and ground straight to the battery, ACC ignition to a fuse (post-fuse side for safety). No ECU glitches, and it wakes cleanly with the key. Cable tidiness is crucial like in all my installations.

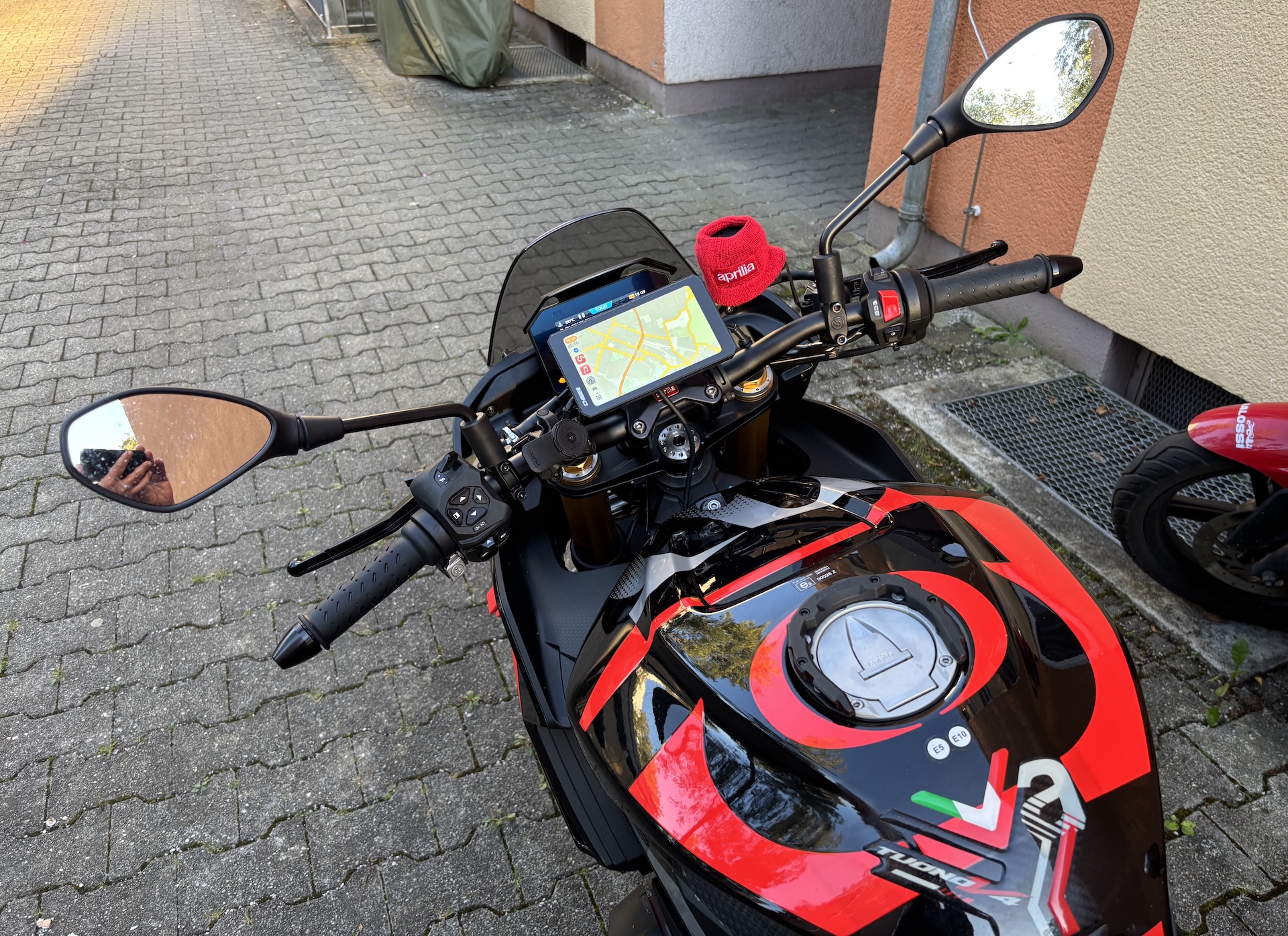

Riding twisty roads on the Tuono, this setup gives navigation without distracting from its sharp handling. Swapping between bikes works great. Good upgrade for tech riders who want GPS even on fast machines.
